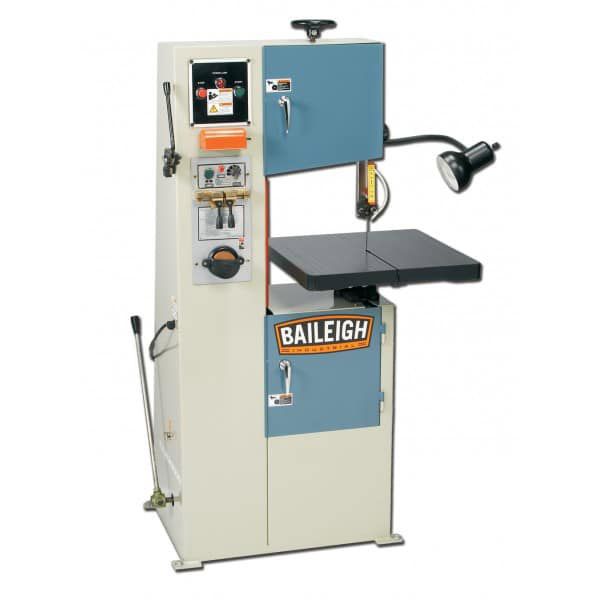

Baileigh BSV-12 Vertical Bandsaw
CODE
TF-BA-BSV-12
In stock
The the BSV-12 from Baileigh Industrial is be the perfect addition to any shop. The BSV-12 is small in footprint, but does not skip on features, and is built to the same high quality standards as the rest of Baileigh Industrial’s vertical bandsaw line. The BSV-12 has a fully welded frame and industrial grade components.
The BSV-12 vertical bandsaw features a 11-3/8” throat depth and a 7-3/4” material opening. The table (483mm - 483mm) also pivots 10° front to back and 15° left to right.
The BSV-12 has 4 operating speeds ranging from 80rpm to 319rpm and a heavy-duty 1/2hp (.4 kw) motor that operates on 220 volt, 50hz, single phase power.
When designing the BSV-12 Baileigh Industrial wanted to accommodate most of the popular blade widths ranging from 6 -3mm (1/4” to 1/2”), allowing even the most intricate cuts. A blade welder is also included for when you need to get to a middle cut on a project.
The BSV-12 vertical bandsaw features a 11-3/8” throat depth and a 7-3/4” material opening. The table (483mm - 483mm) also pivots 10° front to back and 15° left to right.
The BSV-12 has 4 operating speeds ranging from 80rpm to 319rpm and a heavy-duty 1/2hp (.4 kw) motor that operates on 220 volt, 50hz, single phase power.
When designing the BSV-12 Baileigh Industrial wanted to accommodate most of the popular blade widths ranging from 6 -3mm (1/4” to 1/2”), allowing even the most intricate cuts. A blade welder is also included for when you need to get to a middle cut on a project.
- 6mm - 13mm blade width
- 196mm maximum thickness
- 289mm throat depth
