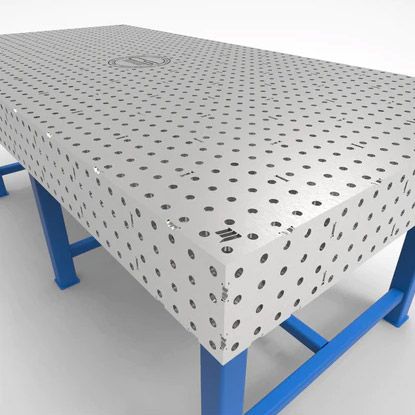

Mac PRO 8 - Modular Fixture Welding Table - 2500 x 1250mm

Our PRO-8 tables are the ultimate professional modular welding table fixture system. These tables are designed inhouse using the tab and slot locking interface. All PRO tables have a 200mm rib sub-frame offering maximum strength and accuracy. The PRO-8 is supplied with a top plate material thickness of 8mm. If you do require a thicker material please check our PRO-6 or PRO-10 ranges.

Unlike other imports and cheaper constructions, we design superior sub-frame cross bracing as this is the most critical part of the fixture table to ensure a truly flat and accurate fabrication surface. We design, test and manufacture everything in house and the UK to maintain a high quality of control.

As standard all of our tables and tool includes the industry standard 16mm hole pattern (50mm hole centres) to work with all industry fixture 16D tooling.

We only use Hot Rolled, Pickled and Oiled S275 structural mild steel. What this means is just after the production the sheet steel is run through an acid bath (Pickling) to remove any impurities, rust and mill scale from the surfaces of the steel. This leaves the sheet raw and unprotected so a light coving of oil is used to protect it. Using HRPO is nicer for our fibre laser cutter as the laser doesn’t need to cut through mill scale and impurities which can and eventually affect the accuracy of the laser cutter therefore using HPRO Steel gives you precision cut parts which in our opinion they looks more awesome than the dreaded mill scale.

PRO Build Options

• Ready Made: We will assemble, weld and quality check your item.
• Ready Made (Legs): As above but we will cut, assemble and weld your leg kit along with your table top. You will receive your table welded up but legs will require bolting on.
• Ready Made (Legs & Castors): As above but we will cut, assemble and weld your leg kit along with your table top. You will receive your table welded up but legs will require bolting on and castors fitted.


• PRO TABLES sized 2.5x1.25m and above are provided with 6x Legs and castors when selected.
• Leg Kit Detail : 70x70x3 legs / 50x50x2 bracing when requested – Mild steel
• Castors Detail: Foot master 80F/100F
