R-Tech 7-Pin Plug (Pre-2014)
CODE
RTW-A-7P
In stock

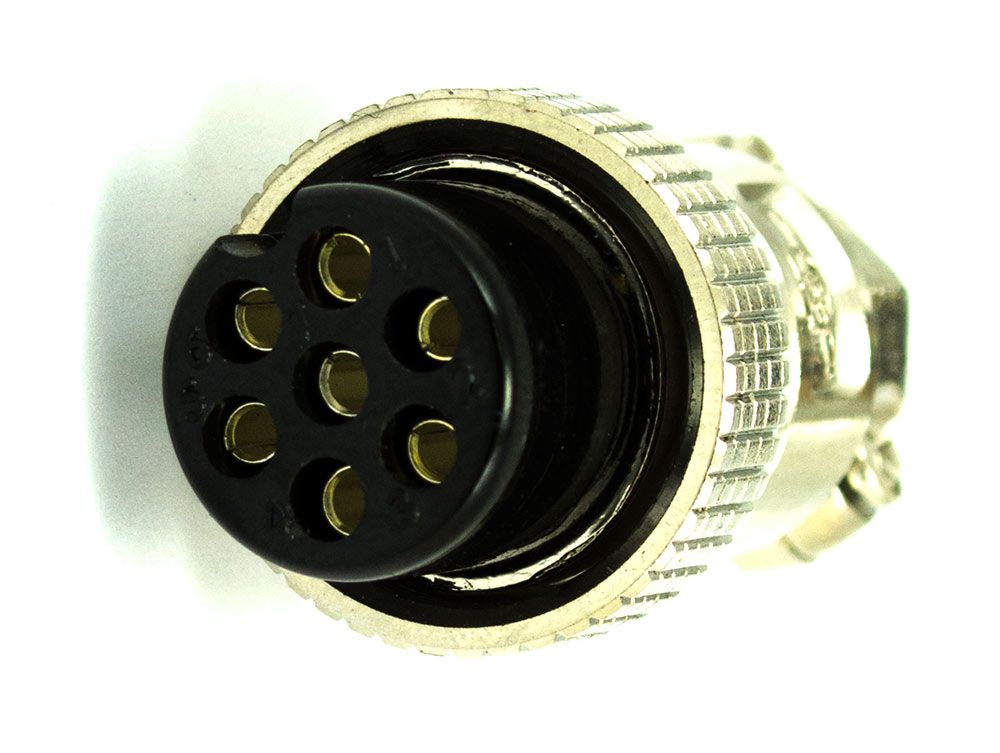

7 Pin Plug for R-Tech Tig Torches and Foot pedals (Pre-2014)
- 7 Pin Plug for R-Tech Machines(Pre-2014)
- For fitment to Tig Torch or Remote Foot pedal
- For all R-Tech machines with 7 Pin plug up to December 2013 - No "Q" prefix to serial number
- Pin connections as follows
- Torch switch - 1 & 2 switch wires
- Foot pedal - 1 & 2 switch wires, 3 Pot low, 4 pot wiper (middle, 5 Pot High, 6&7 short out (This tells machine foot pedal is now fitted)
