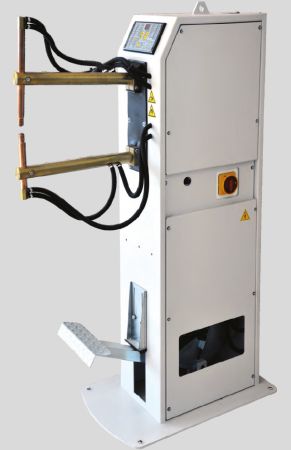

Spot Welder 16KVA Tecna Digital 4640 Pedestal

CODE
Tecna-4640
In stock
Order in for UK Mainland delivery between 25/11/2024 to 27/11/2024
£3,990.00 £3,325.00

Order by 3pm:

Next-day delivery
The Tecna 4640 is a 16Kva Pedal Operated Digital Spot Welder, Ideal for production spot welding, True 3+3mm capacity, Water Cooled Spot Welding Arms, Free delivery to UK Mainland and 1 year warranty
  • Adjustable arms length, foot pedal length
  • Easy to set up via digital control panel
  • Electrode stroke, electrode pressure
  • Requires 32Amp Delayed Trip/Fuse
  • Epoxy coated transformer
  • Water Cooled transformer, arms, electrodes & holder
  • Digital adjustment of weld cycles and welding power
  • Digital selection of: no weld, standard timer, timer with pulse
  • Carriage free to UK mainland
  • 1 Year warranty
  • Input Voltage 415V 50 Hz
  • Power @ 50% 16 kVA
  • Requires 32Amp Delayed Trip/Fuse
  • Maximum Short Circuit Power 12.5KA
  • Arms Gap 220 mm
  • Min Throat Depth 230 mm
  • Max Throat Depth 550 mm
  • Force On Electrodes @ Max Length 95 dAN
  • Electrode Stroke @ Max 15 - 85 mm
  • Digital Welding Timer
  • Water Consumption l/h 220
  • Min Water Pressure Bar 2.5
  • Arms Diameter 40 mm
  • Electrode Holders Diameter 22 mm
  • Weight Kg 135
  • Dimensions (mm) 320 x 800 x 1230
  • Carriage free to UK mainland
  • 1 Year warranty
  • Welding Guides, Videos & Support from the pros.
