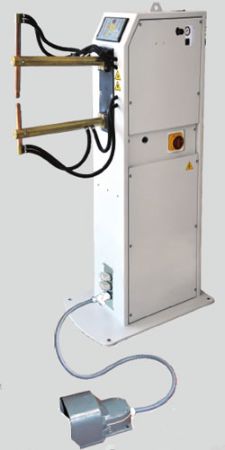

Spot Welder 25KVA Tecna Digital 4648 Pneumatic
CODE
Tecna-4648
In stock
The Tecna 4648 is a 25Kva Pneumatic Operated Digital Spot Welder, Ideal for production spot welding, True 5+5mm capacity, Water Cooled Spot Welding Arms, Free delivery to UK Mainland and 1 year warranty
- Adjustable arms length
- Electrode stroke, pressure, speed
- Electric two stage foot pedal
- Air filter/reducer, lubrication free cylinder
- Requires 50Amp Delayed Trip/Fuse
- Epoxy coated transformer
- Water Cooled transformer, arms, electrodes & holder
- Digital adjustment of weld cycles and welding power
- Digital selection of: no weld, standard timer, timer with pulse
- Carriage free to UK mainland
- 1 Year warranty
- Input Voltage 415V 50 Hz
- Requires 50Amp Delayed Trip/Fuse
- Power @ 50% 25 kVA
- Maximum Short Circuit Power 18KA
- Arms Gap 225 mm
- Min Throat Depth 230 mm
- Max Throat Depth 550 mm
- Force On Electrodes @ Max Length 95 dAN
- Electrode Stroke @ Max 15 - 90 mm
- Digital Welding Timer
- Water Consumption l/h 150
- Min Water Pressure Bar 2.5
- Arms Diameter 36 mm
- Electrode Holders Diameter 19 mm
- Weight Kg 144
- Dimensions (mm) 320 x 800 x 1230
- Carriage free to UK mainland
- 1 Year warranty
