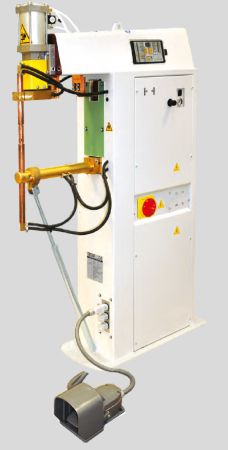

Spot Welder 50KVA Tecna Digital 4666 Linear
CODE
Tecna-4666
Pre-Order
The Tecna 4666 is a 50Kva Pneumatic Operated Digital Linear Spot Welder, Ideal for production spot welding, Water Cooled Spot Welding Arms, Free delivery to UK Mainland and 1 year warranty
- Adjustable arms length
- Electrode stroke, pressure, speed
- Electric two stage foot pedal
- Air filter/reducer, lubrication free cylinder
- Requires 100Amp Delayed Trip/Fuse
- Epoxy coated transformer
- Water Cooled transformer, arms, electrodes & holder
- Digital adjustment of weld cycles and welding power
- Digital selection of: no weld, standard timer, timer with pulse
- Carriage free to UK mainland
- 1 Year warranty
- Input Voltage 415V 50 Hz
- Requires 100Amp Delayed Trip/Fuse
- Power @ 50% 50 kVA
- Maximum Short Circuit Power 17KA
- Arms Gap 280 mm
- Throat Depth 400 mm
- Force On Electrodes @ Max Length 470 dAN
- Electrode Stroke @ Max 5 - 80 mm
- Digital Welding Timer
- Water Consumption l/h 150
- Min Water Pressure Bar 2.5
- Arms Diameter 50 mm
- Electrode Holders Diameter 25 mm
- Weight Kg 225
- Dimensions (mm) 350W x 650D x 1062H
- Carriage free to UK mainland
- 1 Year warranty
