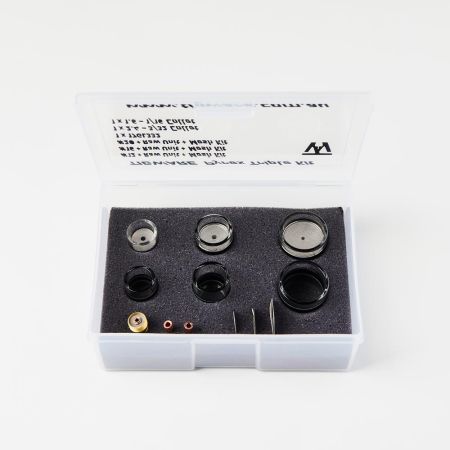

TIGWARE Quartz Gas Lens Triple Kit - #12, #16 & #20
CODE
TW-PYREXBTK
In stock
TIGWARE Quartz Triple Kits are made up from the Quartz range and are designed with the welder in mind. Rated for DC use TIGWARE Quartz Units incorporate TIGWARE’s Triple Diffuser System making them RADICALLY different from the competition giving a smooth controlled gas flow and stable weld pool.
- For DC welding
- Suits 1.6mm (1/16") and 2.4mm (3/32") tungsten
- Stick out: 20mm or higher (greater stick out achieved with higher gas flow
- Rated for MAX 180A non continuous
- Features TIGWAREs Triple Diffuser System
- Includes cup size: #12, #16 & #20
- See tech specs for recommended tungsten stick out and gas flow

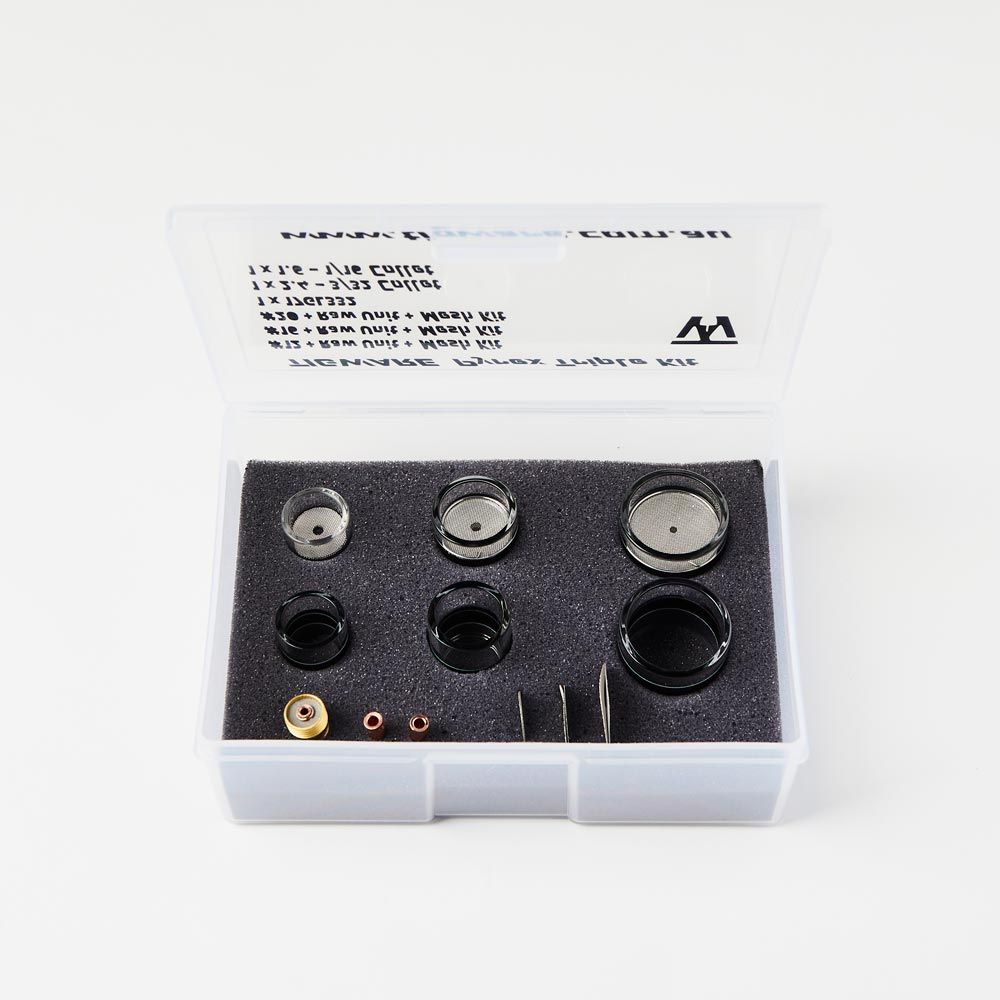

Whats in the kit?
- Size #12, #16 & #20 Quartz Units
- Size #12, #16 & #20 replacement Quartz glass
- Size #12, #16 & #20 spare diffusers
- 17/18/26 TIG torch adaptor - 17GL332
- 1.6mm & 2.4mm collet
For best performance, a greater than normal tungsten stick out with gas flow rates as below is recommended.
- Size #12 = 11 > L/min
- Size #16 = 15 > L/min
- Size #20 = 19 > L/min
Recommended stick out dimensions
- Size #12 - #20 = 20mm (Greater stick out can be achieved with higher gas glow)
