Air Fed Welding Masks | Weltek Navitek S4 Auto Air Fed Mask

Details

The Weltek Navitek S4 Air Fed auto darkening welding helmet is a high-quality air fed welding mask and RPE welding fume extractor featuring variable shade from 9-13, so suitable for all welding jobs. It has a flip up visor for grinding mode, 2 Air flow speeds with L-Ion battery 10 hours running time. Conforms to EN12941 and comes with handy storage bag

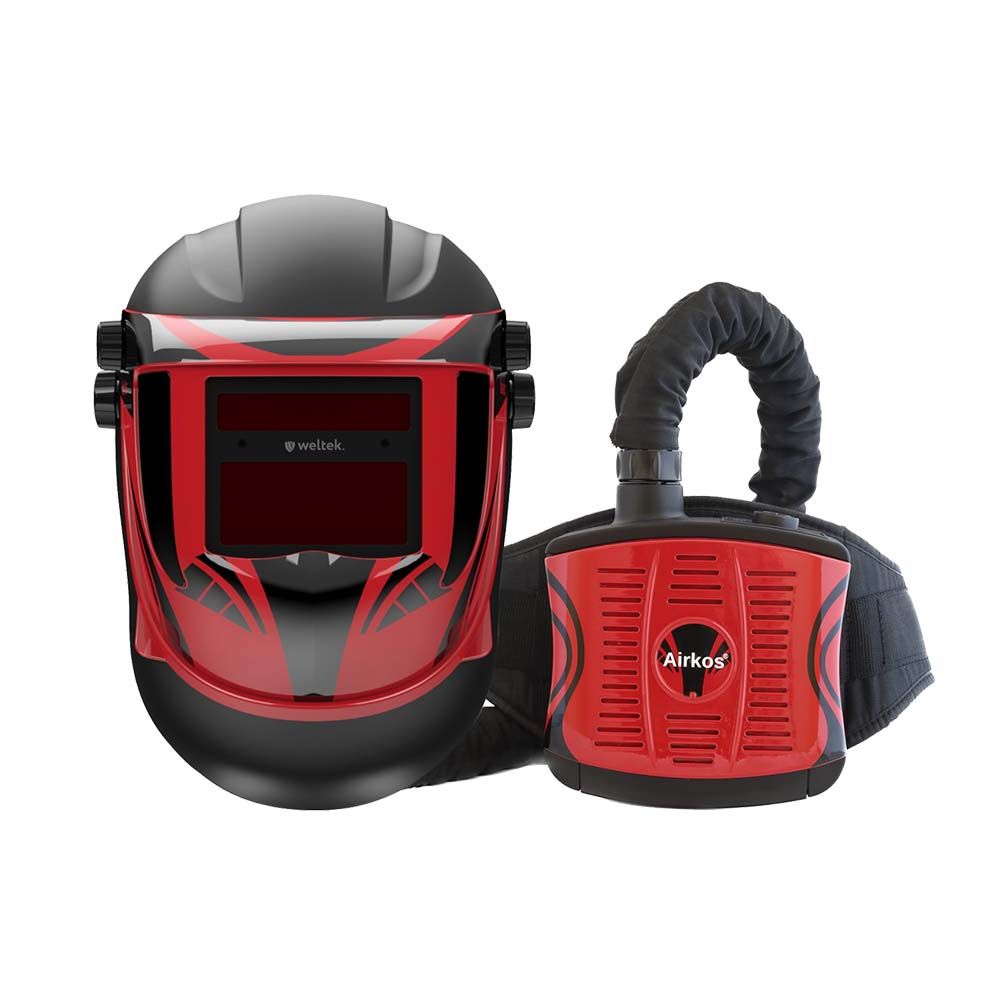

Complete package ready to use, helmet, air blower unit with battery, charger & hoses
Lightweight, Easy to use, Flip up visor for grinding and welding shade 9-13
Full range of replacement filters, lenses and spares available

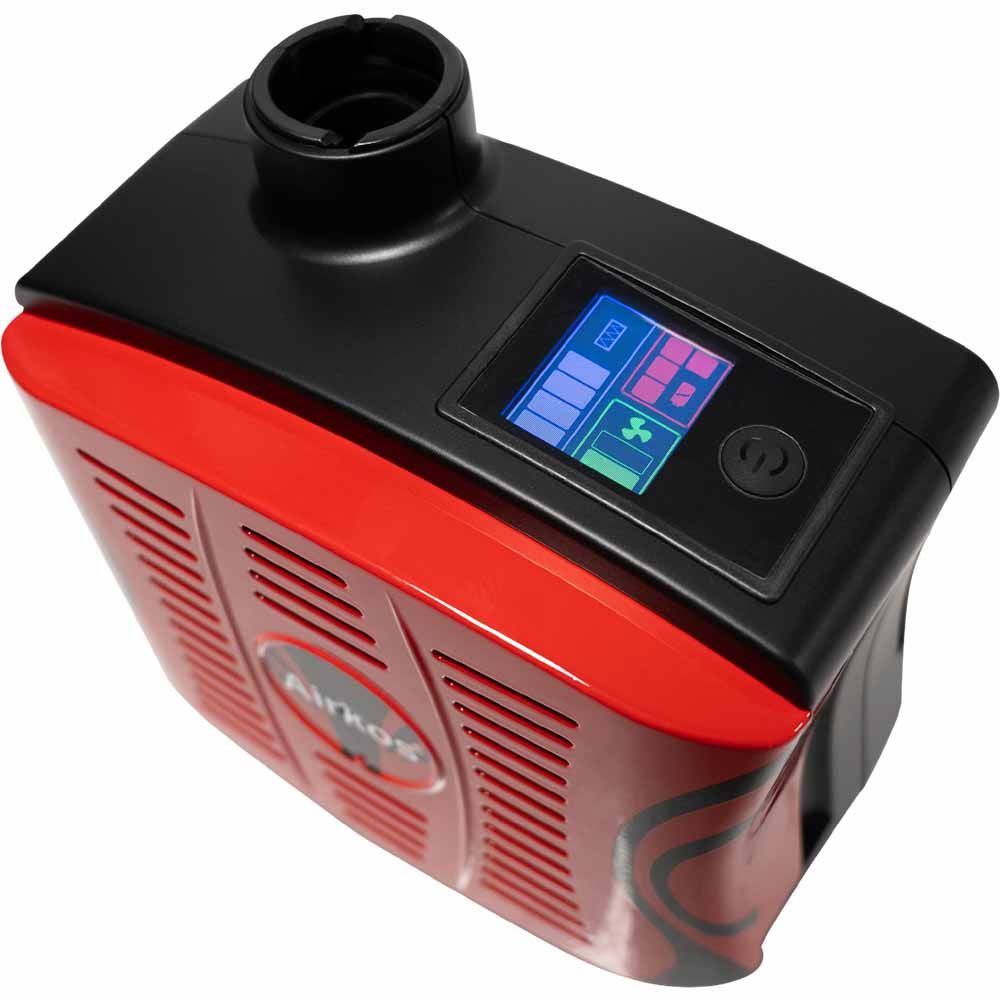

Airkos Blower Unit Details
2 Airflow Speeds 180 & 220 Litres per minute
High-quality RPE welding fume extractor meeting new HSE 2019 guidelines TH2P-RSL EN 12941
Audible and Visual Clogged Filter Alarm for added safety
Rechargeable 4 Cell Lithium-ion Battery with 10 hours Running Time
Airkos Supplied with Main Filter & Pre Filter
Conforms to EN12941, Filtration TH2P-RSL
Weight 1.18 Kg
1 Year Warranty
Navitek S4 Auto Darkening Welding Helmet Details
Flip us visor assy for grinding mode
Dark Shade: DIN 9-13, Clear Shade: DIN 4
Switching Speed: 0-2ms, Arc Sensors: 4
Viewing Area: 93 x 43mm
Power: Solar, Sensitivity & Delay: Yes
Grinding: Yes - EN175B
2 Year Warranty
Conforms to EN166B, 175B, 379
Includes: Storage Bag

See Downloads tab for Parts diagrams, EC,EU & EN Certificates & Owners manual

Suitable RPE (Respiratory Protection Equipment) to meet the new 2019 HSE guidelines, found here

Tech Specs

Airkos Blower Unit
2 Airflow Speeds 180 & 220 Litres per minute
Audible and Visual Clogged Filter Alarm
Rechargeable 4 Cell Lithium-ion Battery with 10 hours Running Time
Optional 6 Cell Heavy Duty Lithium-ion Battery (14 Hours Run Time)
Airkos Supplied with Main Filter & Pre Filter
Filtration TH2P-RSL
Conforms to EN12941
Weight 1.18 Kg
1 Year Warranty

Navitek S4 Auto Darkening Welding Helmet

Dark Shade: DIN 9-13
Clear Shade: DIN 4
Switching Speed: 0-2ms
Arc Sensors: 4
Viewing Area: 93 x 43mm
160 degree side vision
Optical Classes: 1/1/1/2
Technology: Twisted Nematic
Power: Solar
Controls: Stepless
Sensitivity & Delay: Yes
Grinding: Yes - EN175B
Warranty: 2 Years
Conforms to EN166B, 175B, 379
Weight 581g
Includes: Storage Bag

Downloads

Weltek Airkos RPE Instruction Manual

Download

Weltek Navitek Mask Spare Parts Diagram

Download

Weltek Airkos Blower - Spare parts diagram

Download

Weltek S4 Shader Unit EC Certificate EN 379

Download

Weltek Airkos Blower PAPR TH2P-RSL EU Certificate EN 12941

Download

Weltek S4 ADF Shader Unit EU Declaration of Conformity

Download

Weltek Air-Blower EU Declaration of Conformity

Download
