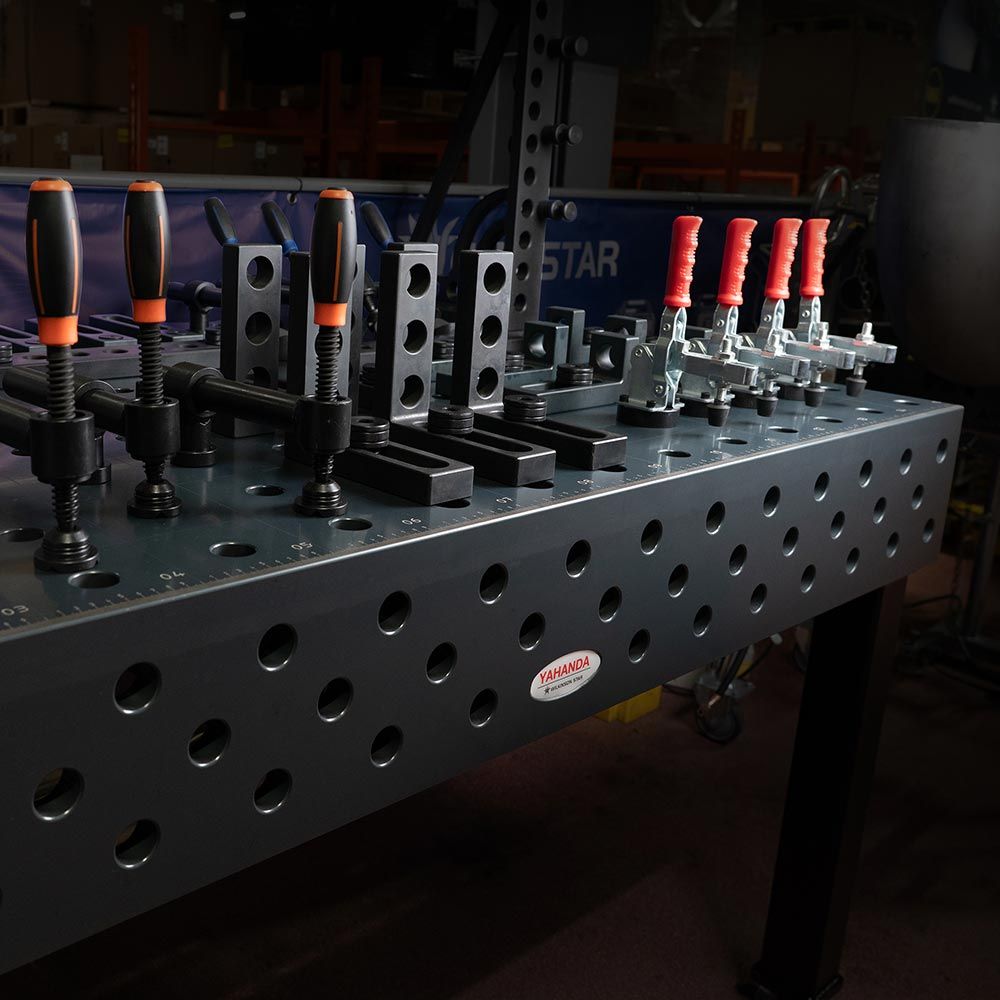

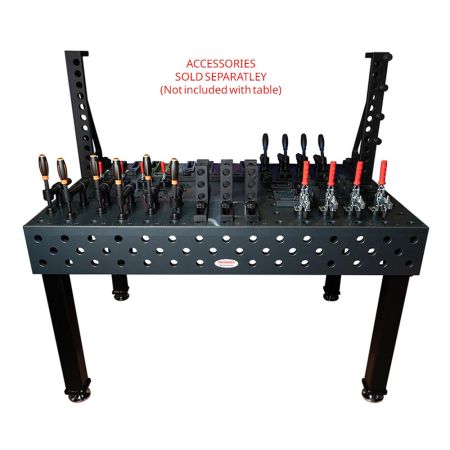

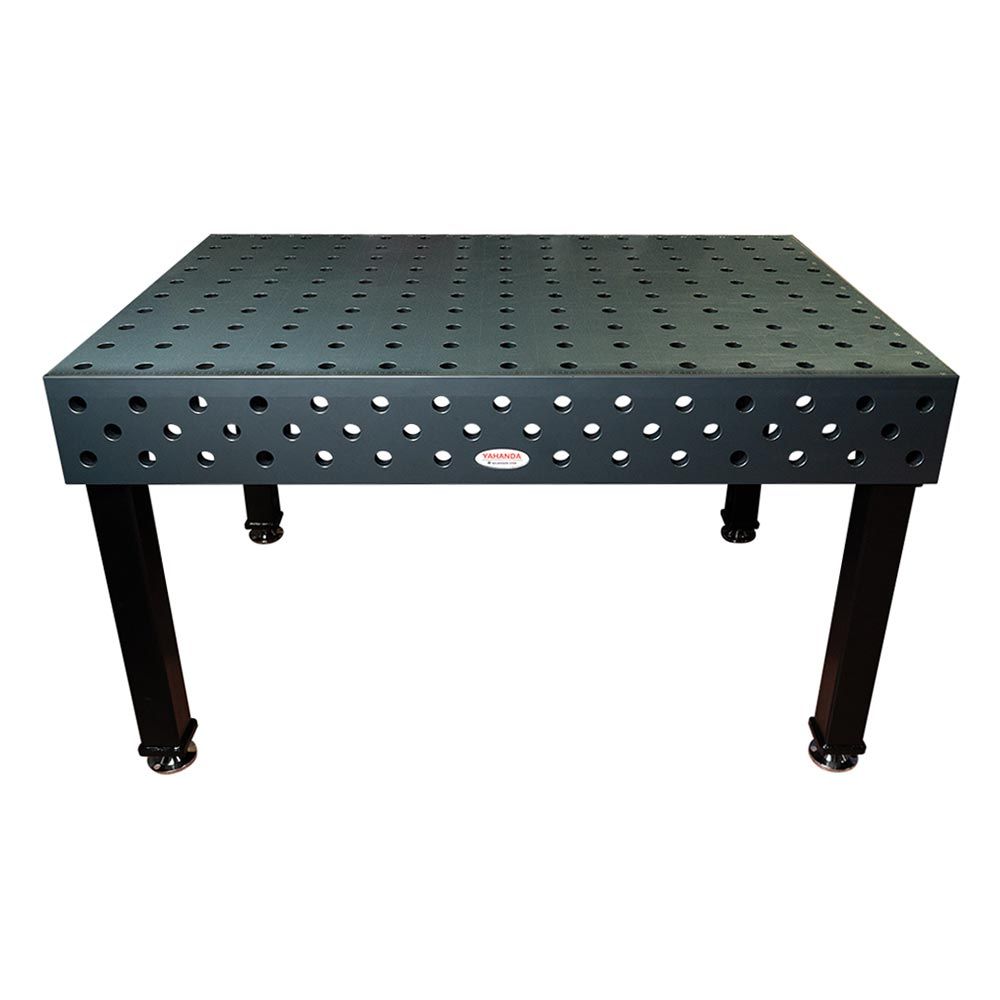

Yahanda D28 3D Welding Table With Standard Support Legs 2000x1000x200mm
CODE
WS-YHD28S2010N
In-Stock, 1-2 day despatch
Enhance precision, efficiency, and repeatability in every welding and fabrication task with our advanced 3D Welding Table Fixture. Designed for professional metalworking and heavy-duty fabrication, this table provides maximum versatility with five fully usable surfaces — one top and four sides — allowing complete freedom for complex setups and multi-angle operations.
- Five precision working surfaces (1 top + 4 sides) for 3D clamping and positioning versatility
- D28 modular system suitable for small and large welding fixtures
- Constructed from 2311 tool steel for superior strength and dimensional stability
- Plasma nitride surface coating provides exceptional resistance to wear, corrosion, abrasion, and scratching
- Hardness rating: HV450–550 (Vickers) for long-lasting durability
- Table thickness: 25 mm solid precision-ground plate
- Reinforced internal rib design ensures high rigidity and load capacity
- Chamfered edges, corners, and boreholes for smooth handling and safety

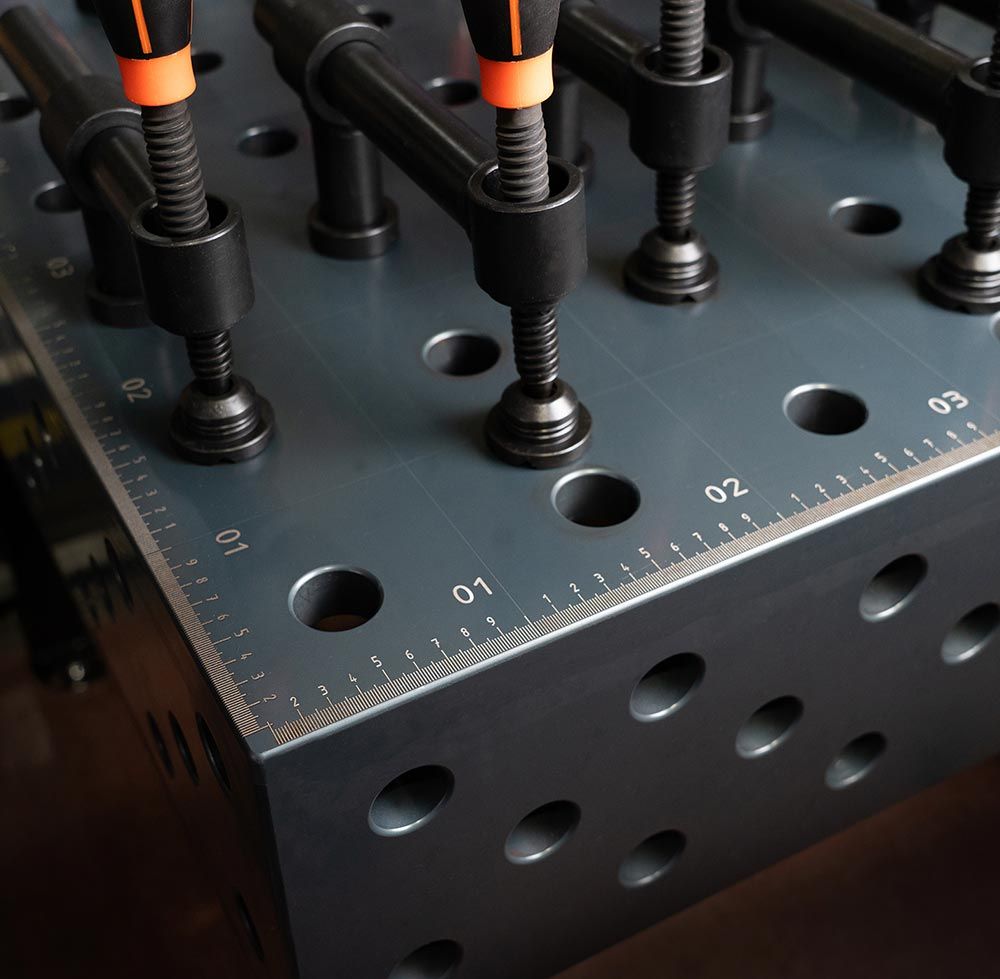

- Integrated millimeter measurement scales on two sides for accurate positioning and alignment
- D28 grid pattern (100 x 100 mm) — compatible with a wide range of modular accessories
- Extensive accessory range for clamps, stops, angles, and locating tools
| Size | 2000mm x 1000mm x 200mm | ||
| Total height | 800 - 850mm (Adjusting range: 50mm) | ||
| Weight | 635kg | ||
| Material | 2311 Tool steel (Annealing) | ||
| Table thickness | 25±1mm | ||
| Hole pitch | 100±0.02mm (tolerance between any two holes) | ||
| Grid pattern | 100mm x 100mm | ||
| Hole diameter | 28mm | ||
| Flatness | ≤0.10mm/m² (Table surface tolerance) | ||
| Perpendicularity | ≤0.1mm/m (Tolerance of top surface and side surface) | ||
| Parallelism | ≤0.10mm/m (Tolerance between top and bottom surface) | ||
| Surface roughness | ≥Ra1.6, ≤Ra3.2 | ||
| Reinforced rib design | |||
| Surface treatment | Nitriding | ||
| Resistant to wear, corrosion, abrasion & scratching | |||
| Hardness rating | HV450 - 550 Vickers | ||
| Chamfered edges, corners and boreholes | |||
| Measurement scale | (mm) on two sides | ||
| Number of support legs | 4 (standard) | ||
| Uniformly distributed load (UDL) | 2500kg/m² | ||
| Max loading | 5000kg | ||
| Central concentrated load (CCL) | 1600kg/m², Max deflection ≤0.3mm | ||
-

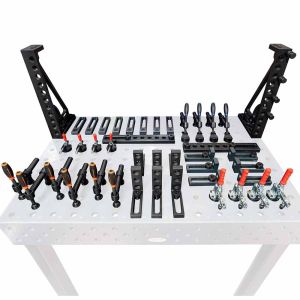

Yahanda D28 Welding Table Accessory Package 81-Piece (Kit 2)WS-D28KIT2£3,222.00 £2,685.00
