R-Tech SpeedMasterâ„¢ PRO HD - True Colour Welding Mask
Speedmaster Pro HDâ„¢ Welding Helmet

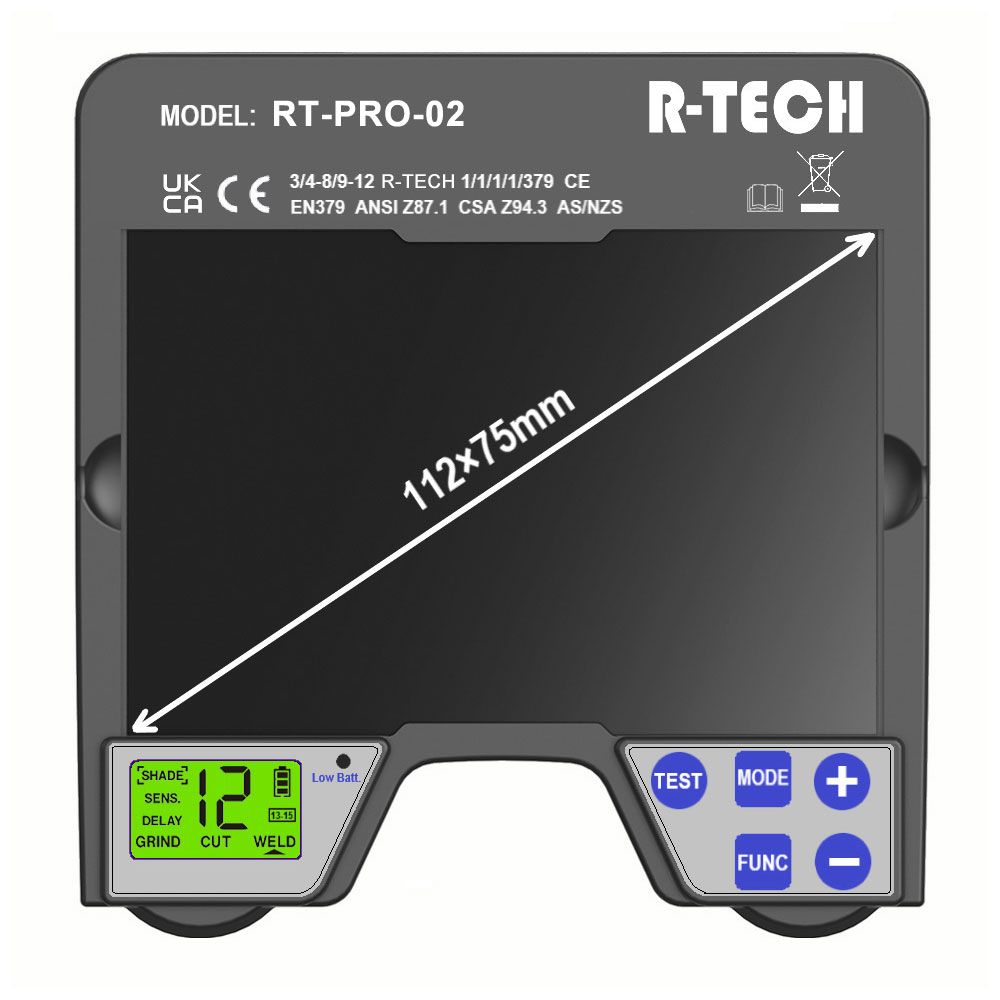

- Massive ADF measuring 112mm x 75mm
- True colour technology - See the weld perfectly
- Best optical quality - ADF clarity of 1/1/1/1
- Ultra sensitive - 4 sensors - 3A AC/DC TIG
- Fast switching time 1/25,000th second

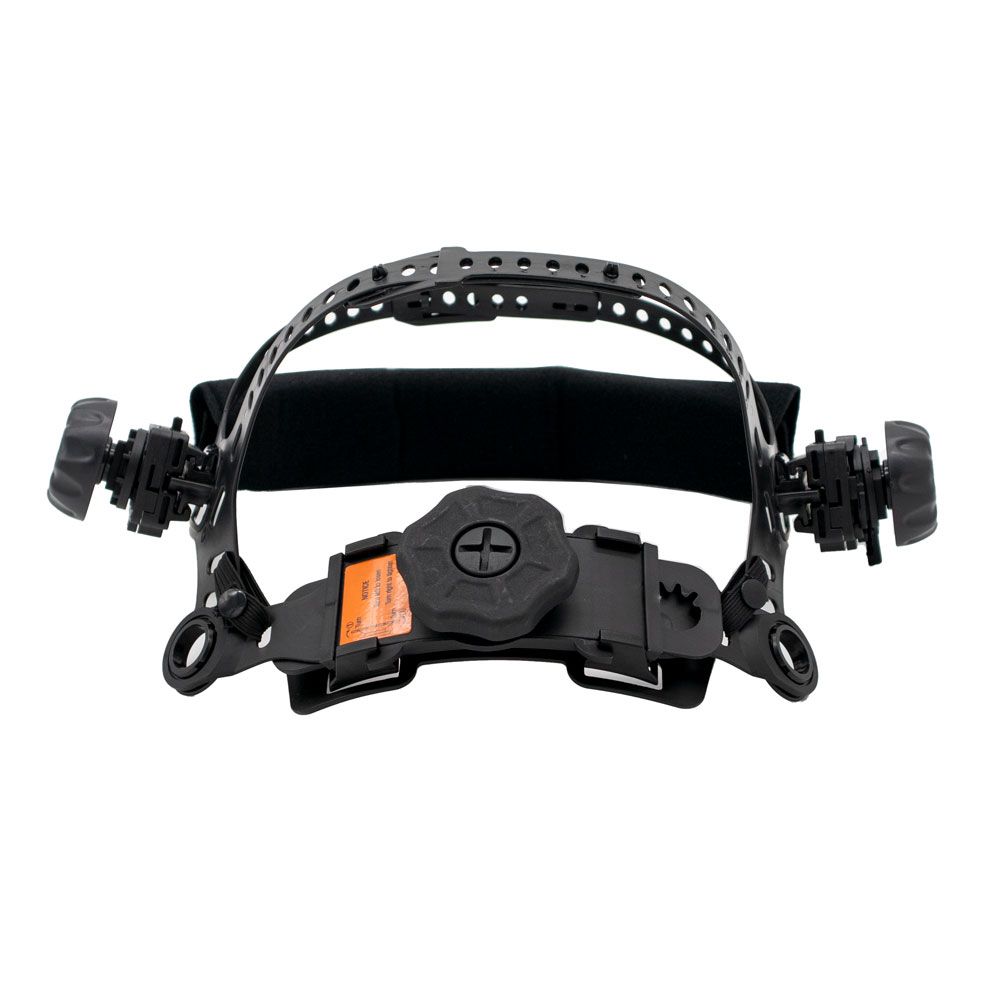

- Ultimate comfort - Fully adjustable HD-07 headgear to suit all sizes
- All day comfort - the HD-07 Headgear gives evenly distributed centre of gravity
- Class leading shade range - DIN4 to DIN15
- Precise digital controls - shade, sensitiivy, delay and weld/cut/grind mode.
- Side view panels offering panoramic vision and better awareness (shade 5), can be blocked out with supplied blanking panels

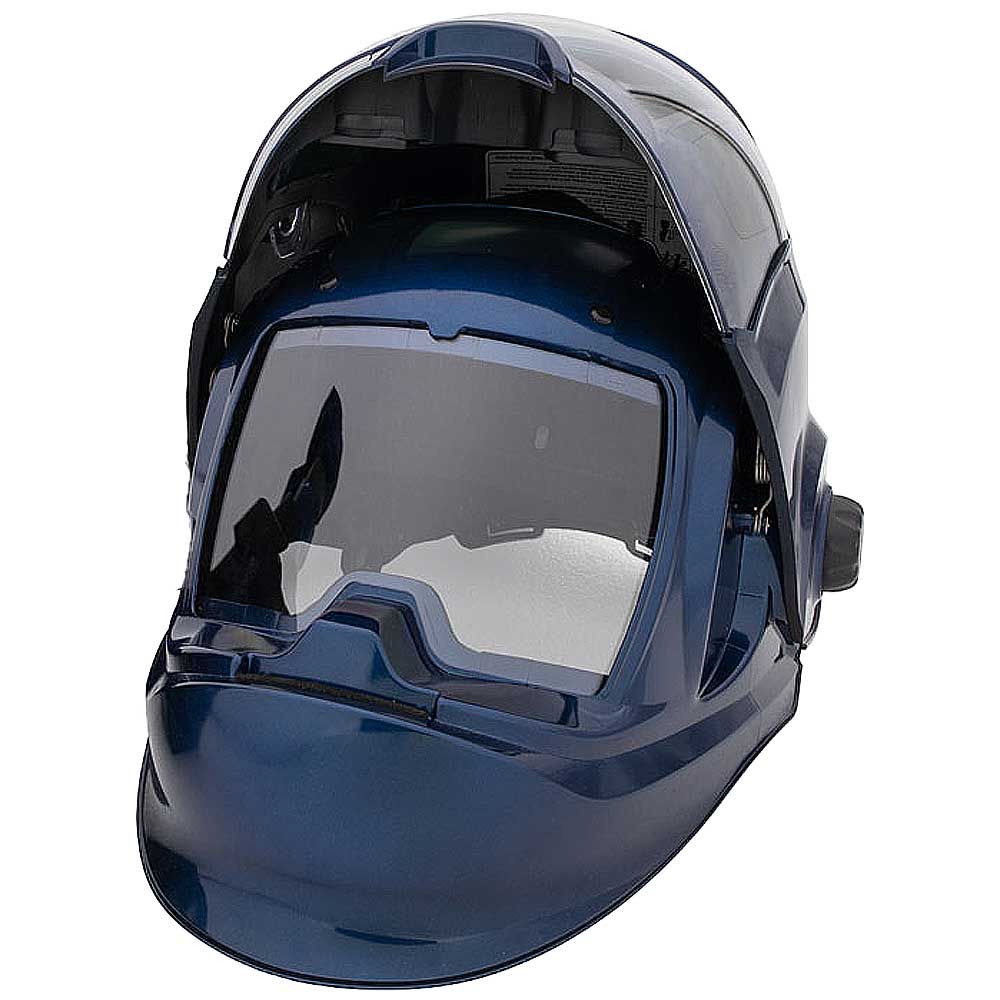

- Lightweight Flip up design with excellent field of vision
- Auto power on with any movement
- Auto power off after 10 minutes of no movement / arc
- Solar cell with battery assist - 2 replaceable CR2450 lithium batteries
- 2 year warranty on ADF unit

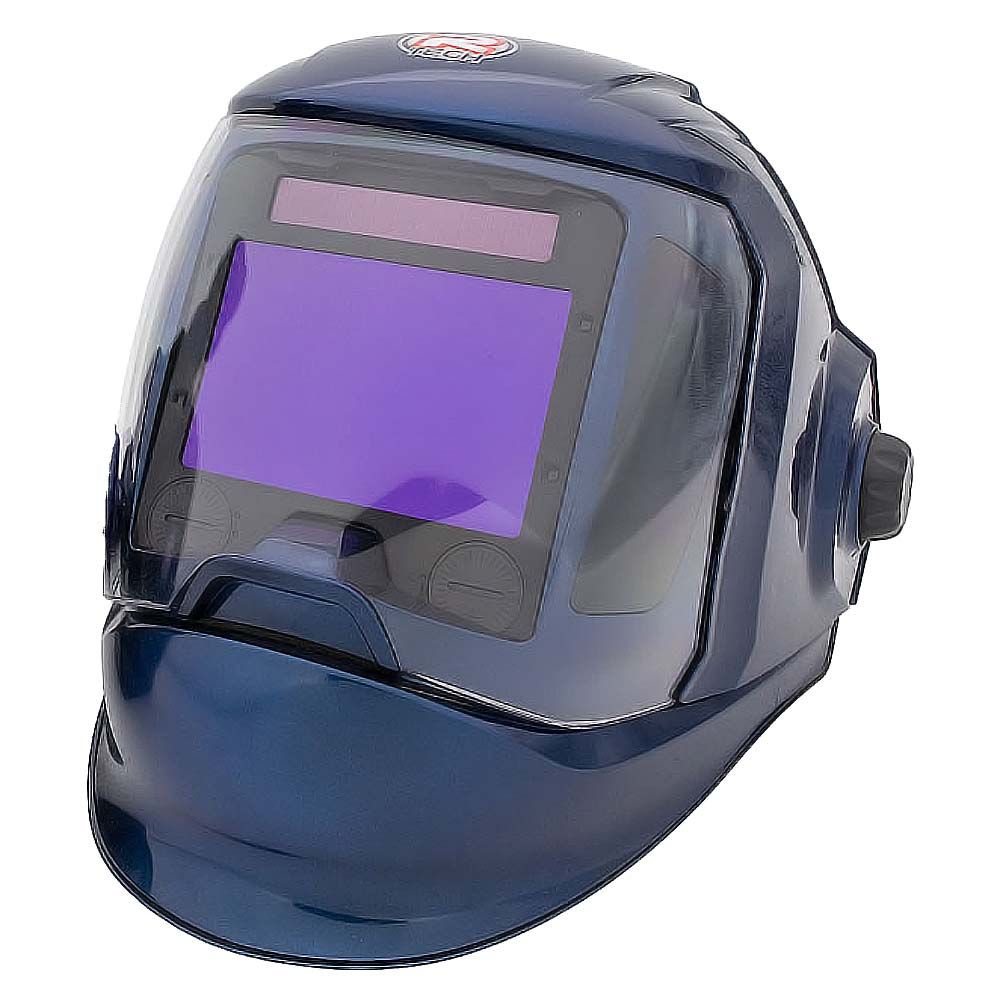

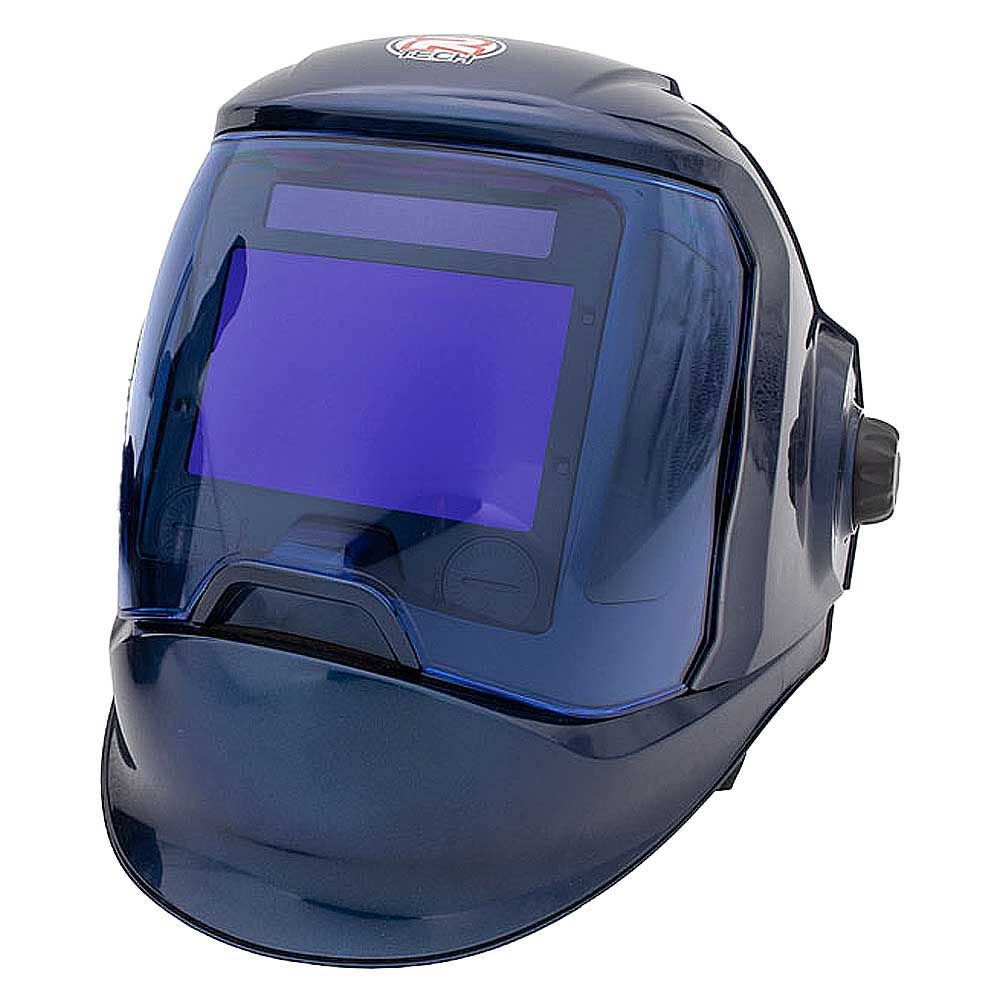

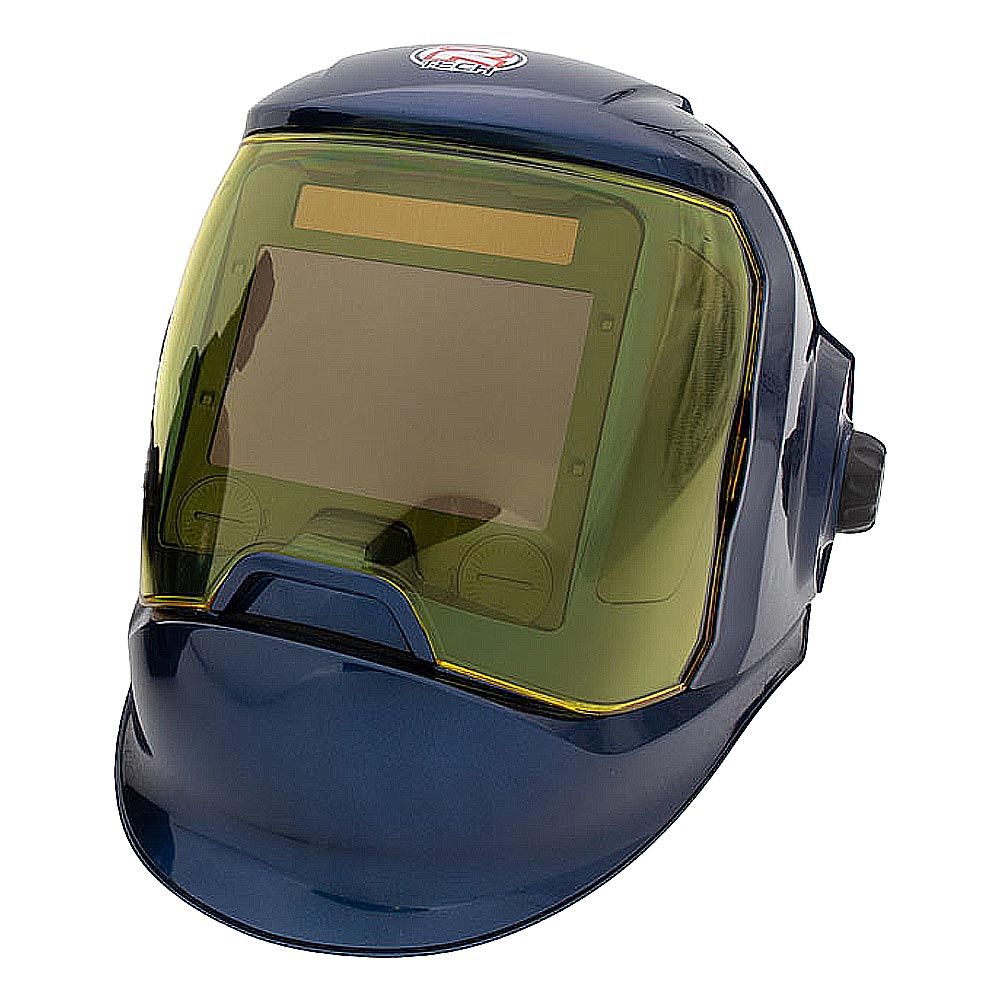

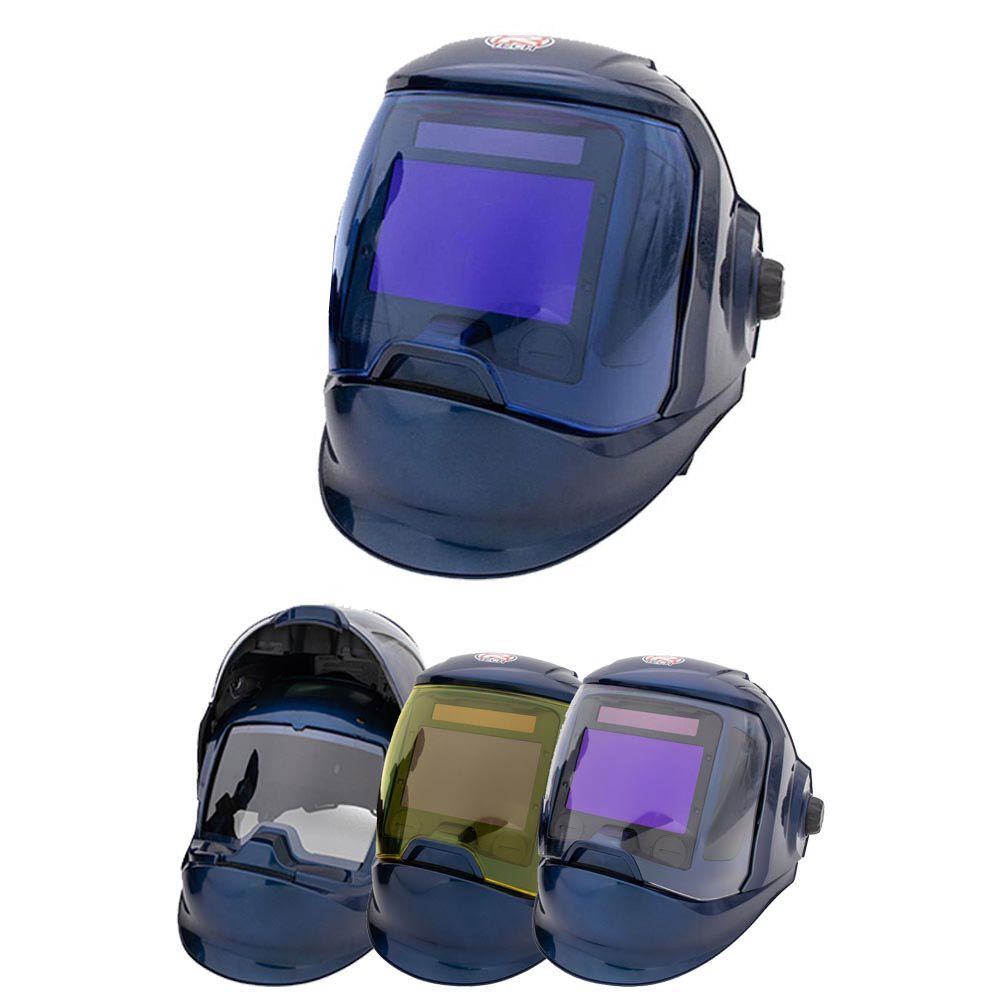

- 3 x Colour outer lenses available - Yellow (Standard fitment), Clear and Blue (optional, purchase seperately)
Sensibly priced Consumables
- Outer Lens - Clear, Blue, Yellow- £4.95 each
- Inner ADF Lens - £1.50
| Optical Class | 1/1/1/1 | ||
| Viewing Area | 112 x 75mm (4.41" x 2.95") | ||
| Variable Shades | DIN 4 to DIN 15 | ||
| Light State | DIN 3 | ||
| Switch Time | 1/25,000th second | ||
| Power supply | Solar cell with battery assist (2 x CR2450) | ||
| TIG Amp Rating | DC ≥ 3A, AC ≥ 3A | ||
| Storage Humidty | <85% | ||
| Storage Temperature | -5°c ~ +55°c | ||
| Standard | EN379 ANSI Z87.1 | ||
| Helmet weight | 857g | ||
R-Tech Speedmaster HD PROâ„¢ Package includes.
- Speedmaster HD Proâ„¢ Helmet with True Colour 112x75mm ADF shader unit
- Yellow outer protective lenses
- Adaptor for magnifying lenses
- Spare ADF inner lens x2, outer shield lens x2, Headshield sweatband
- Blanking shields for panoramic side view lens
- Owners Manual
The R-Tech Speedmaster PRO HDâ„¢ carries the following warranty:-
- ADF Unit - 2 Year Warranty
- Headgear /ratchet assy - 6 Month Warranty
The mask is easy to use and highly reliable but in the unlikely event that it requires attention, R-Tech promise to:-
- Arrange collection via next working day UK courier [48hr offshore]
- Quickly repair at our Technical and R&D centre in Gloucester
- Deliver back via next working day UK courier [48hr offshore]
- All costs covered by R-Tech - Yes, Collection, repair and delivery!
No questions, no hassle, just honest and reliable service - A true no quibble warranty
Most of our competitors only offer return to base [RTB] warranties - you have to pay and arrange to get it back to them which can be a hassle. Many others offer warranties that have clauses and if you don't have it serviced yearly by them, at your cost, the warranty will be void.
Other benefits of owning an R-Tech product include:-
- Free friendly and knowledgeable technical advice via phone and email
- Free setup help always available - We want you to get the best from your product
Don't just take our word for it - see our customer reviews page to see what real customers say about the R-Tech products and our service & support.
Excellent
R-Tech SpeedMasterâ„¢ PRO HD - True Colour Welding Mask
calculated from 63 customer reviews
latest reviews
-
17 September 2024Works well for the price
-
16 September 2024Not known. Gift.
-
12 September 2024Use used many different brands over the years so sage to say this is a very well made and comprehensive welding helmet. To make it even better what you get for the price makes it unbeatable in my opinion, with options for cut grind and weld with multiple shades it's definitely a one for all mask.
-
09 September 2024I?m a beginner and wanted to replace a cheapo, difference is night and day literally. Had to readjust my technique, and I mean that in a good way
-
05 September 2024Very good welding helmet very good picture and very good price
-
28 August 2024Returned helmet was to heavy for me in the spaces I weld The helmet would suit welders , fabricators , grinders The quality was good the flip front was a good design impressed with the additions that come with the mask spare parts , view screens ,but it is a tad on the large side and is a wee bit heavy.
-
27 August 2024Welding historic cars team mates and great quality
-
20 August 2024I don't often leave reviews but I've just got my SpeedMaster Pro HD welding mask. Really impressed with it!! The difference between it and my old one is night and day. Unlike my old one I can see exactly what I'm welding with perfect clarity 👌🏻 This is a real game changer for me! Thanks 😎
-
17 August 2024Good value, quality mask.
-
12 August 2024Grate Product THANKS
-
04 August 2024I run a restoration shop
-
04 June 2024Love the helmet, only going to use it for my rig as want to keep it clean 👌, Top quality 👍
-
23 May 2024I have yet to use the mask for real as yet, it was straight forward to set up fortunately as some of the diagrams were rather small and might be better with coloured arrows. But not a big deal to be fair.
-
16 February 2024brilliant to use replaced my broken snap on helmet of which snap on wanted ?300 to repair this is a better helmet than the one it replaced and cheaper!! only downside with the helmet is its weight, its a heavy unit when flipped up out the way. but more than happy and will order another one for other staff when needed
-
15 February 2024very light and easy to use
-
07 February 2024for mig welding
-
25 January 2024Excellent product will use as main mask
-
21 January 2024I should have brought one of these a long time ago, total game changer! No more scratching around in the dark- BRILLIANT! Thank you.
-
04 January 2024Great product Would have no hesitation in recommending it.
-
27 December 2023Excellent
-
26 December 2023Perfect great product and excellent quality
-
19 December 2023Nice comfy helmet, should last a while, clear screen for grinding...use this quite a lot for cutting out rusty bodywork & scraping bleedin underseal
-
18 December 2023great helmet and comfortable but found it too heavy for me for long term use
-
17 December 2023I use the mask for Tig welding Good for Tig welding looks well made,
-
21 September 2023Was bought as a gift
-
20 September 2023Top quallity.
-
18 September 2023At last I?ve got a welding helmet that?s comfortable and I can see properly.
-
06 September 2023good quality
-
04 September 2023Used for welding and grinding - an excellent all in one helmet
-
25 August 2023Great product very professional
-
22 August 2023I wasn?t sure on this when I tried it on as it is abit front heavy but in use it?s great and the clarity and field of vision are brilliant . Time will tell if it?s as good as my old speed glass
-
11 August 2023I use my welder for maintenance on my farm mainly for repairs. I will recommend the welding mask to my son-in-law who is a coded welder. This is the best mask I have owned or used.
-
11 August 2023Brilliant piece of kit, highly recommended
-
31 July 2023Does what it was intended for "
-
26 July 2023The quality is good except for the mounting of the head support, could do with beefing up a little. Found the adjustments fairly flimsy for a fairly heavy helmet. Was very surprised how much difference the clear view lens makes. Might even improve my dodgy welding.
-
25 July 2023I am in the motor trade would recommend to all top quality
-
23 July 2023Very nice bit of kit. Comfy too.
-
20 July 2023Good quality mask with plenty of adjustments.
-
20 July 2023I came to this as, with advancing years, I was struggling to see well enough to *** in a straight line with my "old" (six years) helmet. The tech has really come on lately... The true-colour thing is great (a proper "night and day" difference) and that, a ** screen, and the side windows mean I'm happy moving about with the helmet on when not ***ing. That's a novelty for anyone used to "old school" helmets. While many will want the "***, flip up, grind, flip down, *** again" for me its the comfort of the headband. Its also got a hinge bit at the very back that makes the on and off so much nicer. I also like it switching on and off with movement. It is heavier, noticible putting it on the first time but that was forgotten the first session. In time I hope to enjoy the ***/grind/*** but for now worth the premium just for bench work trying to build skills again.
-
20 July 2023Excellent product
-
19 July 2023I looked at the reviews on YouTube and ordered one as it was highly recommended and the 10% deal was on. I removed 4 layers of protective film from the various lenses and and tried the mask only to find it was similar to my Parweld mask which has that green tint. Then I found it had another layer of green protective film on the inside of the cartridge, which once removed lifted this mask into a different league altogether! This mask is very impressive with significantly improved initial and welding vision, my first few welds have been a pleasure and I should have invested in one years ago.
-
18 July 2023I am only a hobby engineer & use flux core wire welding as all my work has to be done outside but this mask has improved my welding by 100% as I can now see what I am doing clearly. All I could see through my 20 year old auto darkening mask was green glare so it was more guess work with it than anything else. I never get enough practice to envisage the weld path & speed of the run so this mask rely gets me on track. My only critisism (hence the 4 star rating) is that to adjust the ADF is rather awkward as you have to squeeze your finger between the welding mask & grinding mask while watching through the grindingmask at the partialy lifted welding mask to do any adjustements. I have slim fingers so it is ok but how a person with large hands would go on I don't know unless I am missing something of course. The mask is realy well made, finished brilliantly and comes with a good supply of spare lenses & a carry bag, a realy good buy.
-
17 July 2023Comfy as and I've never been able to see the weld pool like this before, first class.
-
10 July 2023I use it for Tig welding and would recomment a true five star product.
-
09 July 2023Great product
-
06 July 2023splended
-
05 July 2023Excellent helmet performance for low amperage tig and high amps stick welding. Recommended for hobby and professional welders alike. Top quality with large viewing area and the grinding feature is great
-
01 July 2023As a user of cheap masks in the past this mask has absolutely transformed my welding experience. I now wonder how I ever managed to use my R-Tech tig at all. I?m sure it will last a long time as I?m only a hobby welder and keep it in the supplied bag when not in use. In summing up it?s testament to the old saying that you get what you pay for.
-
26 June 2023Hobby welder, appreciate wide field of view, more natural presentation of work letting me see workpiece clearly, safety & practicality of multiple layers of eye and face protection
-
23 June 2023Huge improvement over my old helmet. Can see clearly the welding.
-
26 May 2023Only used once since my purchase, I'm very happy with it as it's a pleasure to use.
-
22 May 2023I have recently started using this helmet after being lucky enough to win one. It's a dream to use and I would highly recommend it
-
12 May 2023I use this for my job . Good vision seems to be a good mask .Just started using it today so just getting used to it
-
11 May 2023Great helmet if it is a little heavy, I anticipated this before the purchase because of the design. Clarity was *** I have purchased more expensive helmets ( different brads ) but this for me rates one of the best
-
30 April 2023fantastic bit of kit solid and well made , love all the numbered adjustments on the headband , true colour adf is fantastic field of view is second to none , will have to spend 2-3 times this amount to get anywhere near as good , good aditional lenses in thge box , 1 ever so minor not so good , side blanks are fiddly to fit and the units not light but thats the trade off for being strudy and well built 10-10
-
21 April 2023It took a little getting used to coming from your typical auto darkening welding helmet as you can see so much more. Now I?m used to it, I?m really pleased with it. Has genuinely improved my welding for being able to see a lot more.
-
21 April 2023The clarity of the screen is great, really impressive. The helmet itself is a little on the heavy side, out of the box, but is very comfortable when worn, with an excellent range of adjustment.
-
20 April 2023The new lens makes a big difference when welding. The quality is very good except the lens and shield hold in clips are a bit fiddly. I would recommend R Tech equipment to everybody and their customer service is first class...
-
10 April 2023I use it in my farm workshop. I would recommend it to my friends and *** . I don't think you could find a better quality product absolutely first class.
-
02 April 2023i make and repair motorcycle fuel tanks so i can be welding aluminium one day and tig brazing old steel the next ,i use two different settings on my screen due to the low power settings for brazing and i found the settings screen to be in an awkward place and only visible through the inside safety screen with the mask half closed , however due to the excellent clarity of the screen i've found a setting that works for both my needs so that shouldn't be a problem . i really like the extra visibility at the sides of the main screen a great feature compared to traditional welding helmets and the adjustability and fit are at another level , really comfy to wear and not too heavy . i've got a few friends who do a lot of welding and they've asked to borrow my helmet for comparison to the one they use , it was on their recommendtion i purchased my tig welder so hopefully they will purchase a new helmet because of my recommendation .
-
31 March 2023Have only bought it and is still in the box
-
24 March 2023Good so far, not had much time to use it yet.
-
24 March 2023The product seems very good value for the money
-

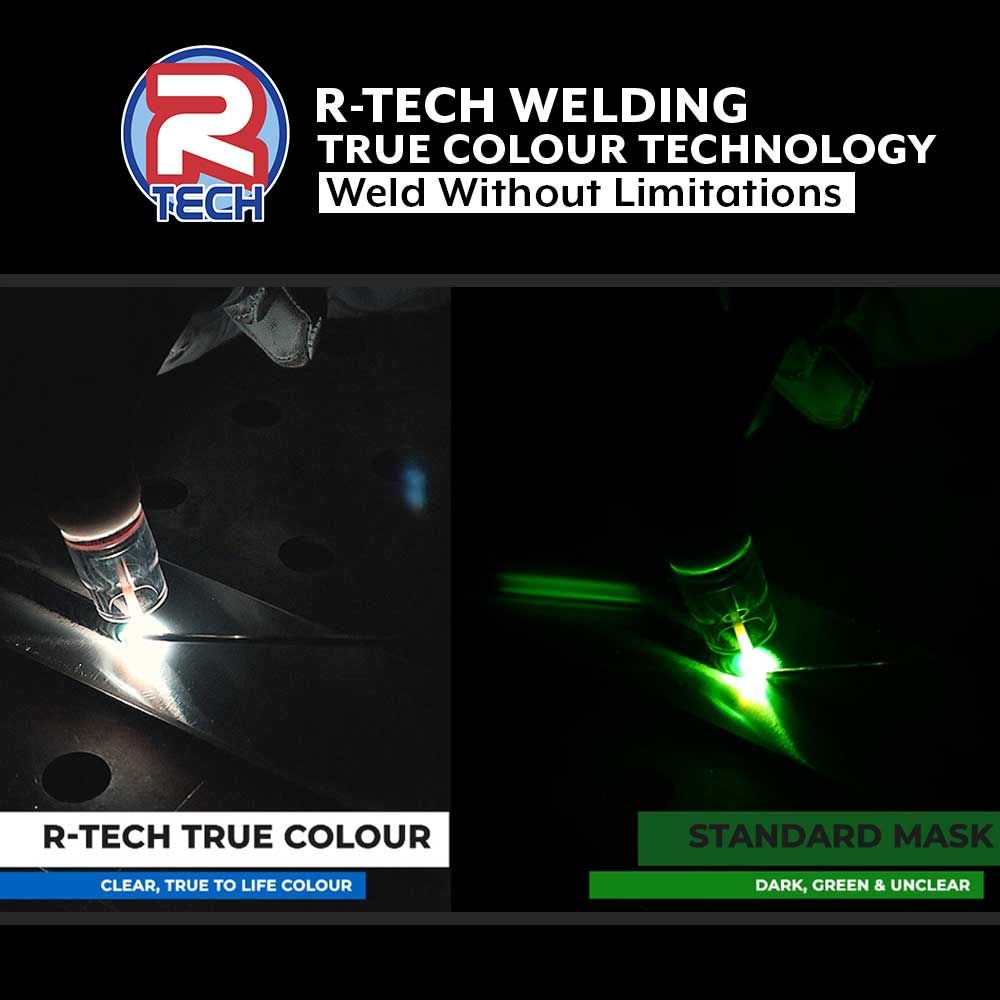

What are the benefits of True Colour ADF technology?
On standard ADF's, the shade filter unit (ADF) give a dark green/blue hue to the view.
True colour technology offers a more realistic viewing experience by allowing more light wavelengths through, giving you a more natural colour view.
You get a crystal clear view of the weld puddle, once you have used a True Colour mask, you won't want to go back to the standard mask. -
What does 1.1.1.1 clarity mean on my welding mask?
1.1.1.1 clarity is the highest level of clarity available, so no distortion in what you see through the ADF lens.
Some lesser quality ADF shader units can make the view blurry or out of focus. -
Why is the price so competitive? It's such a high specification helmet!
We sell direct to you and have no dealer / diistributor middlemen.
So you get a better product for a better price!
All backed by our 2 year no quibble warranty and friendly customer service.
Still not convinced, checkout our reviews here - we strive to deliver the best product / price / service in the welding industry. -
How long does an air-fed welding mask battery last?
The standard battery 5200mAH supplied with the R-Tech Spiritus Air-Pro will give 8+hrs on a full charge.
Charging time is about 2-3 hours.
One benefit of this mask is it allows on 'On machine charging' - So if you do forget to charge battery, you can plug charger unit it and carry on using mask.
We do have a higher capacity battery 6200mAH battery that will give 10+hrs run time. Part Number: RT-PAPR-55
We also keep our replacement battery costs at a sensible price, so you can purchase a spare battery if you weld for long hours and have 1 on charge. -
Why do I need an Air-Fed welding mask? Is it due to HSE law?
The HSE (Health & safety executive) advised that welding fumes can be cancerous.
Company's have to protect its workers using the following controls.
LEV - Local exaust fume ventilation
RPE - Respiratory protective equipment (Air-Fed Welding Mask)
From HSE WebsiteWelding fume: Protect your workers: HSE Overview
By law you must protect your workers by controlling the health risks from welding fume.
This applies to specialist welders and workers who do some welding, no matter how small the amount.All welding fumes can cause lung cancer, so you must put controls in place.
HSE has issued a safety alert about the health risks of welding fume.
Welding fume can also cause asthma and many other health conditions.You can control risks to health from welding fumes by:
Local exhaust ventilation (LEV)
Using respiratory protective equipment (RPE) and personal protective equipment (PPE)
Welding fume is subject to the Control of Substances Hazardous to Health (COSHH) Regulations. -
What does the 3 year warranty on air-fed mask cover ?
Our R-Tech 3 year collect and return warranty on the Spiritus Air-Pro Mask offers the following.
Once we have confirmed you have a fault with welding mask, we will do the following.Â- Arrange collection via next working day UK courier (48hr offshore)
- Quickly repair the machine at our Technical and R&D centre in Gloucester
- Deliver back via next working day UK courier (48hr offshore)
- All costs covered by R-Tech - Yes, Collection, repair and delivery!
No questions, no hassle, just honest and reliable service - A true no quibble warranty
Note: Lithium battery is covered by a 1 year warranty - 2 year warranty on ADF filter unit and air blower assy. -
How often should I replace my air-fed welding mask filter?
The main air filter should be replaced after 180 hours of use for optimum protection.
If you are working in a very dusty enviroment, you may need to replace filter sooner.
The air blower assy automatically senses air flow pressure due to condition of filter and adjusts accordingly.
If the alarm buzzers sounds due to poor air flow, check filters and replace. -
Why should I buy a Spritius Air-fed mask from R-Tech?
R-Tech provide you with high quality welding equipment with easy useable features, at exceptional value with un-rivalled direct customer support.
All our machines are robustly built using the latest ultra reliable IGBT inverter power components sourced from Siemens Infineon in Germany & USA.
We give a 3 year collect and return warranty on Spiritus Masks, a true no quibble warranty. We pay for and arrange collection, repair and return to you. General turn-around is 3-4 days, Can you current supplier offer such fast service?
We also offer a free loan machine service to get you back welding quickly and if arranged before 3pm, this can be delivered next working day for UK mainland.
10 year duty of care on spare parts - We keep a large stock of spares in our Gloucester premises.
We build our machines in a modular basis which ensures any future repair bills are kept to a minimum, unlike some manufacturers who build the internals of their machines on just one or two P.C.B's. We ensure ours are designed to have internal components easily replaced ensuring cost effective repairs.
-
Active Welding Mask Magnifying Lens 1x - 2.5xWA-EHW44200£8.77 £7.31
Front Outer Blue Protective Lens - Spiritus ProRT-PRO-31£5.94 £4.95
Front Outer Yellow Protective Lens - Spiritus ProRT-PRO-32£5.94 £4.95
Front Outer Clear Protective Lens - Spiritus ProRT-PRO-30£5.94 £4.95
ADF Inner Protective Lens - Spiritus ProRT-PRO-20£1.80 £1.50
